IP20 350 KVA Indoor Voltage Optimisation Unit 500×1050×1800mm

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SJD
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Detail Information
High Light:

electricity saver device

,

commercial voltage optimisation


Product Description

SJD-350KVA IP20 Indoor Voltage Optimization Unit (VOU) With GPRS



Quick Detail:



Dimension(W×D×H)mm : 500×1050×1800



Voltage optimisation is an electrical energy saving technique which is mainly installed in series with the mains electricity supply to provide a reduced supply voltage for the site's equipment. Typically, voltage optimisation can improve power quality by balancing phase voltages and filtering harmonics and transients from the supply, although not always. Voltage optimisers are essentially transformers used to deliver power at a reduced voltage from the raw mains supply.







Description:





Electrical equipment is designed to accept a wide range of input voltages about its nominal design center. However, if the actual supply is higher than necessary the equipment will consume more power than needed and in many cases, equipment life is reduced, effectively increasing the cost of ownership.

A 230V linear appliance operated at 240V will consume approximately 9% more energy than necessary. A voltage reduction within statutory limits can produce up to 25% (subject to load) reduction in energy consumption and in addition will extend the life of many types of electrical equipment.

By reducing supply voltages to a controlled, site adjustable level, our Voltage Optimization Unit (VOU) allows equipment to operate at optimum efficiency. The result is lower overall running and ownership costs and reduced carbon footprint – each kWh of electrical energy saved is equivalent to 0.537kg of CO2.

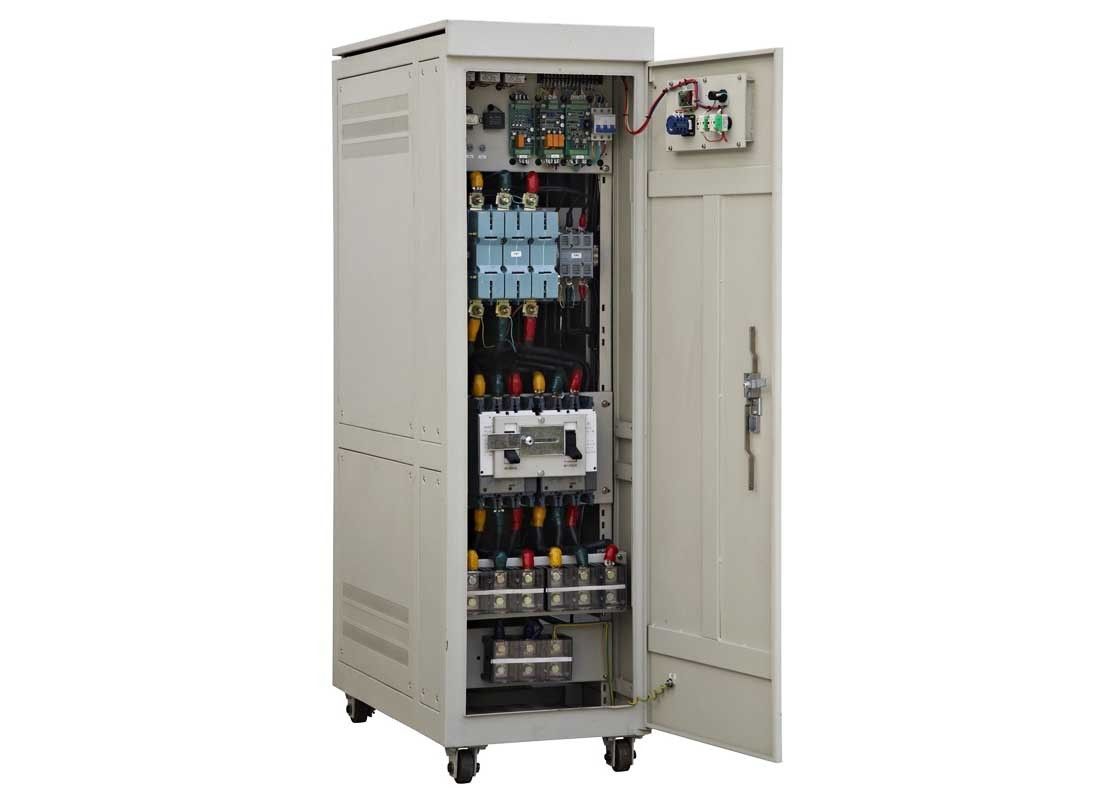

IP20 350 KVA Indoor Voltage Optimisation Unit 500×1050×1800mm 0







Applications:





Most VO units are installed in commercial premises, in between the raw mains transformer and main low voltage distribution board. However, this provides for no selectivity and in electrical engineering terms is considered a poor solution. A full study should be undertaken by the facilities manager and VO company , to select which supplies could benefit the owner by reducing the voltage and which supplies would give no commercial benefit. This way the owner only purchases a VO of the correct size and not one that's for all supplies. Installing a VO unit to optimise all supplies would give a longer return on investment, a higher capital outlay and makes no commercial sense.









Specifications:





Input Voltage Phase to neutral: 230V±15% (195V~265V) adjustable
Output Voltage Phase to neutral: 220V adjustable
Output Accuracy ±1.5%
Supply Frequency 50/60Hz
Voltage Regulation Mode Independent phase regulation
Insulation Class H class
Duty Type Continuous
Cooling Type Natural Air(AN)/Forced Air(AF)
Efficiency >98% at full load
Protection Class IP20(indoor), outdoor on request
Electrical Safety CE equivalent
Operational Temperature -20 °C to +45 °C
Relative Humidity <90%
GPRS Remote control and monitoring the VO unit parameters
Master Controller Set output voltages 225V, 220V and 215V by manual









Competitive Advantage:



  • Energy saving of up to 25%
  • Fast return of investment(ROI) time
  • Prolonged equipment life span
  • High operational efficiency
  • Adjustable configurations based on site requirements
  • GPRS and Wireless Energy Monitors for real-time energy monitoring
  • Protects equipment against failures due to over or under voltage
  • Internal no-break bypass – allowing no power interruption during maintenance
  • Single and three phase up to 5000KVA
