JAJA Series Energy Saving Household Voltage Stabilizer For Overvoltage Protection

Basic Information
Brand Name: Modern
Minimum Order Quantity: 1
Payment Terms: L/C, T/T
Detail Information
Model Number:: Home Use Current Type:: AC
Protection: Overvoltage, Short Circuit, Other, Unbalanced Loads, Low Voltage & Overload & Short Circuit Application: Computer, Other, Security / Monitoring / Alarm, Education Etc., Financial
Phase: Single Phase, Other, Three Phase
High Light:

uninterruptible power supply system

,

industrial uninterruptible power supply


Product Description

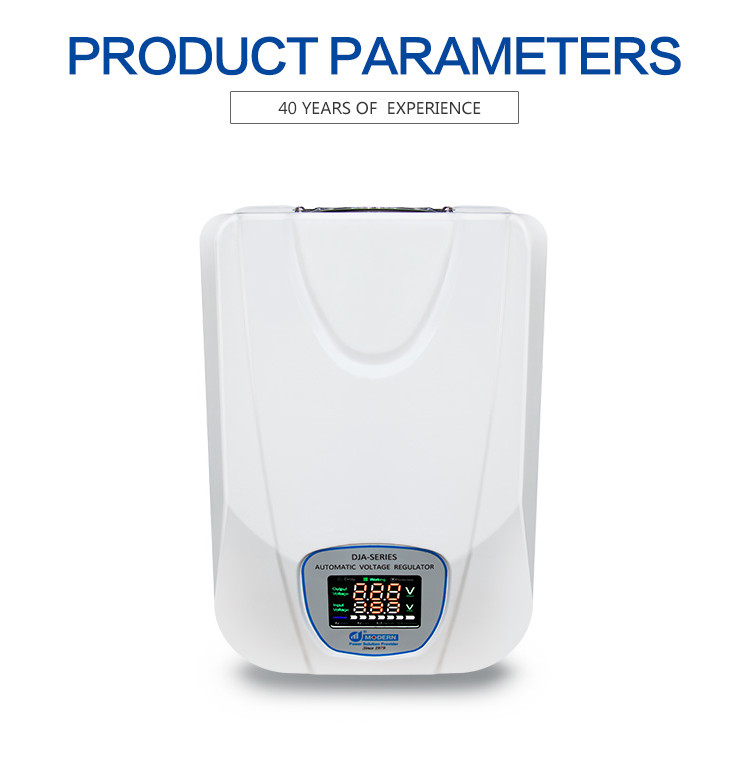

JAJA Series Energy Saving Household Use Voltage Stabilizer

It is known that the working voltage range of household electric appliance is within 220V±10%, But in reality, the grid power supply would fall to a voltage as low as a value between 140V to 170V during peak hours and it could increase to as high as above 240V on some occasions. This kind of wide voltage fluctuation may affect the normal function of household electric appliance and other electronic devices, or even cause some damage to them. Adopting advanced digital control system, our JAJA series energy saving household use voltage stabilizer features high precision, wide input voltage range as well as high reliability, low power loss and cost-effective. It is an ideal choice for protecting household electric appliance.



This type of electronic AC voltage regulator transforms output voltage by (intelligent micro-computer grid) to .

This series could be used in house electric appliance,lighting,computer system,air conditioner,medical devices,office appliance and factory lab,etc.



Compensation-based regulation: CONSTANT POWER within the input voltage range

•Zero-crossing triggering in magnetic-latching relay switch

•Digitally-displayed Parameter

•Energy-saving

•Insulation of transformer :H class(220℃)

•Coil-winding without bobbin technology:to accelerate heat dissipation &compact design



VPI(vacuum press impregnation):lower noise,improved

mechanical strength and insulation class

•Ventilation cooling system:intelligent control for machine temperature for reliability

•Protection:over-current/voltage/temperature.under-voltage,etc.



Warning

  1. Slight noise is to be heard at work
  2. There is certain heat while machine is running the is mantling the case of machine is forbidden in case of danger.
  3. To avoid shortened lifespan or even damage of machine, it is not allowed to run it under extreme conditions(such as limitation of input voltage, input frequency, rated power, harsh environment)
  4. Hazardous materials such as flammable, explosive and chemicals should not be placed within 2 meters from the machine.



Caution

Do not disassemble the machine for repair without authorization. For any doubt or machine failure, please consult the manufacturer or professional after-sales service .
