3 Phase 380V / 400V IP55 Outdoor Energy Saving Transformer 150KVA

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: EST
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Detail Information
High Light:

dry type power transformers

,

Electric Power Transformers


Product Description

380V/400V IP55 Outdoor Energy Saving Transformer 150KVA



Quick Detail:



Energy Saving Transformer-EST 75KVA help you reduce voltage and save energy.



Demension ( W×H×D mm) : 300×700×600



Description:



Many types of electrical equipment work perfectly well on a voltage lower than the standard mains supply. This is particularly true for equipment designed to operate on 380V or 400V three phase supplies where the supply is 415V. The actual power supply is higher than necessary the equipment will consume more power than needed and in many cases, equipment life is reduced, effectively increasing the cost of ownership.



Energy Saving Transformer (EST) helps organizations make some of the biggest financial savings possible on their energy bills by reducing the mains voltage used to power electrical equipment. It is a tapped auto-transformer which reduces voltage by up to 12% by a fixed amount, making it ideal for sites with a reasonably stable voltage supply. At full load the EST Voltage Optimization delivers efficiency of more than 99% which can realize energy savings of up to 20%.

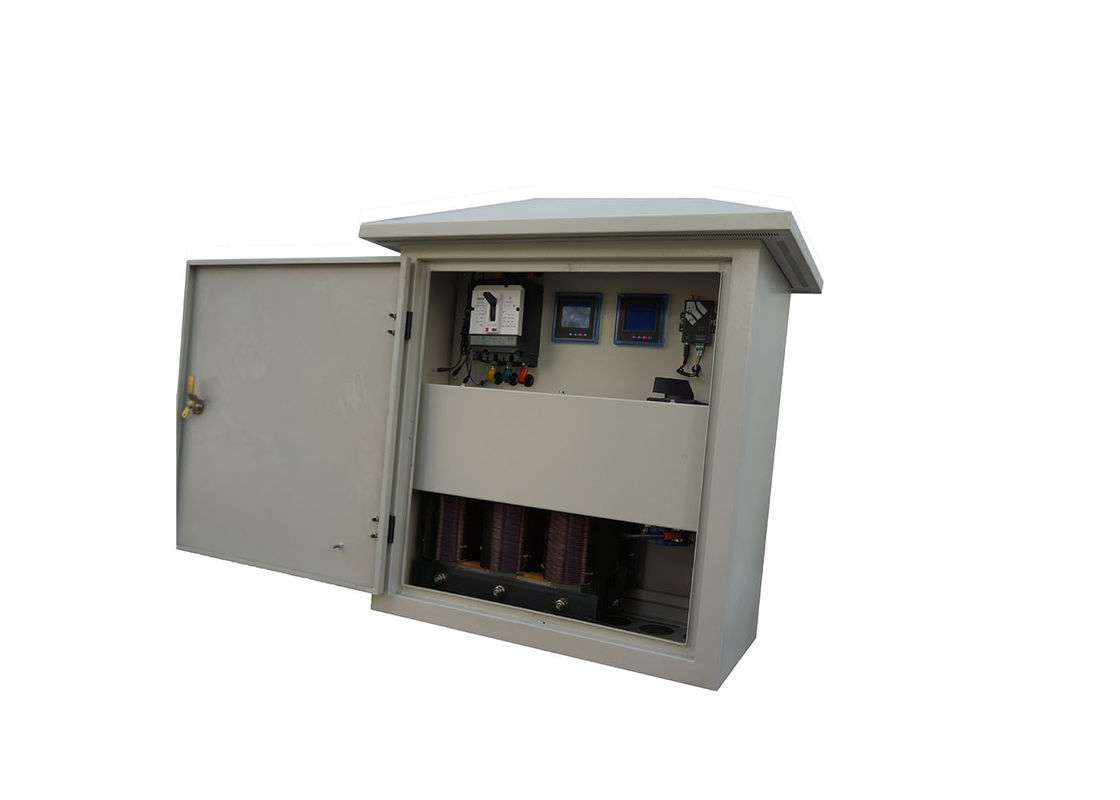

3 Phase 380V / 400V IP55 Outdoor Energy Saving Transformer 150KVA 0









Specifications:



Input Voltage Maximum 440V three phase
Output Voltage Maximum nominal reduction of 12%
Output Adjustment 3 fixed taps of 6%, 8% & 10%(other upon request)
Supply Frequency 50/60Hz
Waveform Distortion None
Insulation Class H class
Duty Type Continuous
Cooling Type Natural Air(AN)/Forced Air(AF)
Efficiency >99% at full load
Electrical Safety CE equivalent
Operational Temperature -20 °C to +45 °C
Relative Humidity <90% non-condensing
Enclosure IP20(indoor), outdoor on request
GPRS Remote control and monitoring the VO unit parameters







Competitive Advantage:



  • Energy saving of up to 20%
  • Fast return of investment(ROI) time
  • Prolonged equipment life span
  • High operational efficiency
  • Adjustable configurations based on site requirements
  • Display of input and output voltages and output current
  • Internal protection against overheating
  • Optional GPRS and Wireless Energy Monitors for real-time energy monitoring
  • Single and three phase up to 1000KVA
