| Place of Origin: | China |
|---|---|
| Brand Name: | Modern |
| Certification: | CE,ISO 9001 |
| Model Number: | DBW |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 unit/month |
| Input Range: | AC 100V-260V | Output Range: | AC 220V+/- 2% |
|---|---|---|---|
| Frequency: | 50Hz | Electrical Safety: | CE |
| Protection Class: | IP20 | Phase: | Single Phase |
| High Light: | automatic voltage regulator 3 phase,automatic voltage regulator for generator |
||

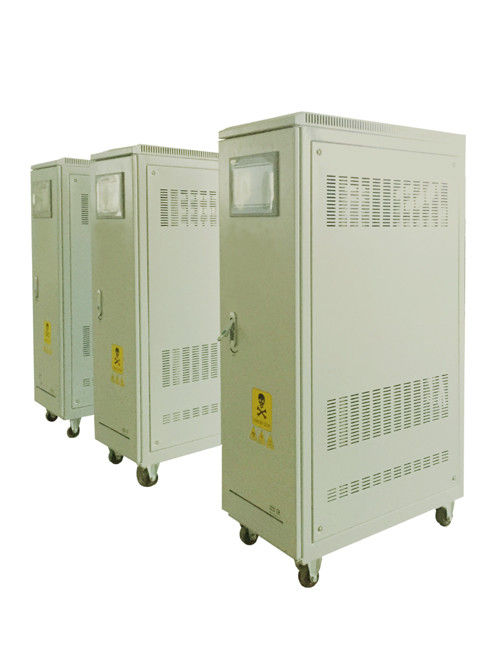

1 Phase 15 KVA DBW IP20 AC Power Stabilizer , 50Hz / 60Hz Industrial Modern Stabilizer,High Efficiency,Energy Saving
Description:
Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage regulators provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.
Each regulator has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.
We are Manufacturer which specialized in Servo Voltage Stabilizer, Uninterruptible Power Supply (UPS), Active Power Filter, etc for nearly 40 years. And be vendor of Mitsubishi Elevator in East Africa, GE, Emerson.
Applications:
BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .
Specifications:
| Input Voltage |
Single phase 220V±20% The other input voltage range and rated voltage can be custom designed. |
| Output Voltage | Single phase 220V±1-5% |
| Supply Frequency | 50/60Hz |
| Insulation Resistance | ≥2MΩ |
| Voltage Regulation Mode | Independent phase regulation for three phase |
| Waveform Distortion | nil |
| Insulation Class | H class |
| Method of Voltage Regulation | Regulation transformer with servomotor |
| Insulated Strength | Single phase: 2000V/1min without puncture |
| Efficiency | >97% on full load |
| Overload Rating | Withstand 200% overload in short time |
| Protection class | IP20(indoor), outdoor type on request |
| Electrical safety | CE equivalent |
| Operational Temperature | -20 °C to +45 °C |
| Functions | Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown, Under voltage shutdown, Safe start |
Competitive Advantage:
Extremely wide voltage regulation range
· Maintenance free roller type carbon brush
· Individual regulation with unique small dimension
· Maximum capacity up to 5000KVA
· High Mean time Between Failure(MTBF)
· Reliable and quiet servo motors
· Wheels mounted for easy installation
· Start up delay to prevent over current inrush
· Isolation transformer on request
· Indoor or outdoor version on request
