AC Power Stabilizer Single Phase JAJA series 1-20KVA 220V±20%

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SBW
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Detail Information
Capacity: 1-20KVA Votage Stability Range: -20%~+20%
Weight: 78.5Kg Phase: Single Phase
Insulation Resistance: ≥2MΩ Operational Temperature: -20 °C To +45 °C
High Light:

automatic voltage regulator for generator


avr voltage regulator

Product Description

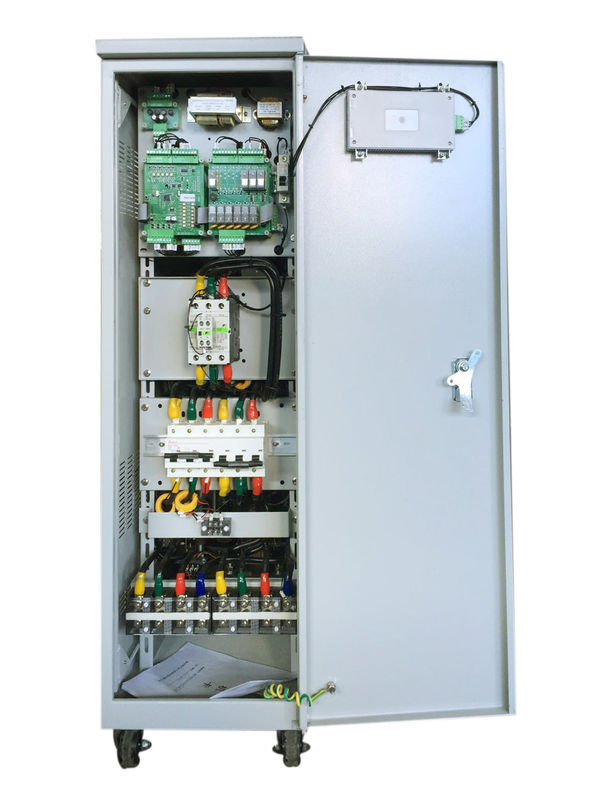

AC Power Stabilizer Single Phase JAJA series 1-20KVA 220V±20%


Quick details:

Capacity: 1-20KVA

Input voltage: 220V±20%

Output voltage: 220V±1-520%

Frequency: 50/60HZ

Protection class:IP20

Insulation class: H Class


DBW series compensation voltage stabilizer is highly beneficial when the electricity supply to the site is at a higher or lower voltage level than needed. This system stabilizes the input voltage to be stable and generates a reliable output voltage to the residential, commercial, industrial site. Therefore, it can achieve energy saving and electricity bill reduction by decreasing power consumption.
Voltage Regulator Feature:
1.This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe.
2.It is provided with two systems of manual/automatic dual control,direct output and stabilizing output, with the functions of over/under-voltage protection,delay and error protection etc, it is reliable and suitable forany load.
BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High- rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X- ray, CT scanner, MRI system,Radiation therapy machine,other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .
Technical parameter

Output Voltage (Preset at 1.5%) 220V
Efficiency >98%
Precision 1-5%
Frequency 47-53Hz
Response Time <0.5S/20V(Line Voltage)
Insulated Strength 2500V/1 minute without puncture
Insulated Resistance >2MΩ
Wave Deformation Nil
Isolation transformer Optional
Surge Protection Optional
