| Place of Origin: | China |
|---|---|
| Brand Name: | Modern |
| Certification: | CE, ISO, TUV, SGS |
| Model Number: | SBW30KVA |
| Minimum Order Quantity: | 1 unit |
| Price: | USD1000 1 UNIT |
| Packaging Details: | Wooden pallet |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 100 UNITS ONE MONTH |
| Color: | Beige | Weight: | 100kg |
|---|---|---|---|
| Dimension: | 320*640*970mm | Rated Current: | 45A |
| Voltage Range: | 160-250v | ||
| High Light: | servo motor voltage stabilizer,servo controlled voltage stabiliser |
||
30KVA Automatic Voltage Stabilizer For industry with CE Certificate
Quick Detail:
| Capacity | 50KVA |
| Certificate | CE |
| Model | SBW |
| Phase | Three Phase |
Description:
Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage regulators provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.
Each regulator has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.
We are Manufacturer which specialized in Servo Voltage Stabilizer, Uninterruptible Power Supply (UPS), Active Power Filter, etc for nearly 40 years. And be vendor of Mitsubishi Elevator in East Africa, GE, Emerson.
Applications:
Broadcast:Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .
Automatic Voltage Regulator Specification
Wenzhou Modern Group Co., Ltd.
| Model | SBW-30KVA |
| Capacity | 30KVA |
| Current | 45A |
| Phase | Three phase |
| Stable input voltage | Line to Line : 364V~520V |
| Working input voltage | Line to Line : 364V~484V |
| Output voltage | Line to Line:400V±2% |
| Input protected value | Under voltage:320V, Over voltage:520V,Over Current:45A*0.9 |
| Output protected value | Under voltage:364V, Over voltage:520V,Over Current:45A*0.9 |
| Frequency | 50Hz |
| Technology | Digital Signal Processing(DSP) And Voltage vector control Technology |
| Insulation resistance | ≥2MΩ |
| Noise | <55dB |
| Insulation class of transformer | H class |
| Wire system | 3-phase-5-wire-system |
| Operation | ≥50,000 hours |

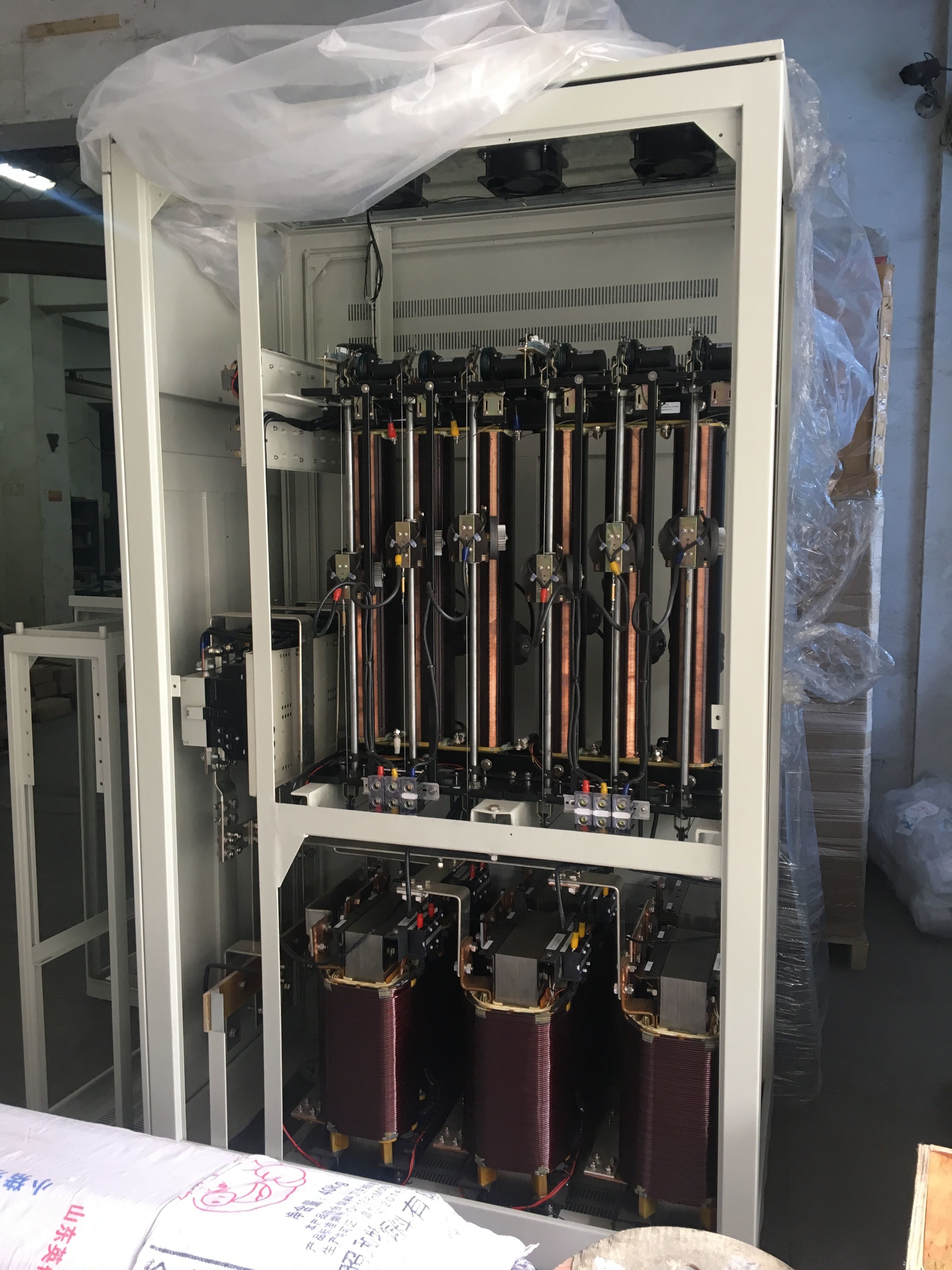

| Method of voltage regulation | Three phase independent regulation with roller brush |
| Insulated strength | Three phase:2500V 1min without puncture |
| Output accuracy |
Selectable: ±1% to 5% Factory preset: ±1.5% |
| Efficiency | ≥98%(full load) |
| Overload Capacity |
150%Over Load 60seconds 120%Over Load 10minutes |
| Cooling System | Auto Forced Air |
| Dimension | 320*640*970 |
| Net weight | 90-100kg |
| Color of housing | Beige |
| Protection class | IP20(indoor) |
| Electrical safety | CE equivalent |
| Ambient temperature operating | -20℃ to +45℃ |
| Altitude | <1000m |
| Relative humidity | <90% |
| Functions |
Malfunction protection, Safe start, Manual/Auto start select,Manual Bypass by MCB,,RS232/485 Interface, Protection(Short- Circuit ,Overload,Over/Under Voltage) Visual HMI ,Security password |
