| Place of Origin: | China |
|---|---|
| Brand Name: | Modern |
| Certification: | CE,ISO 9001 |

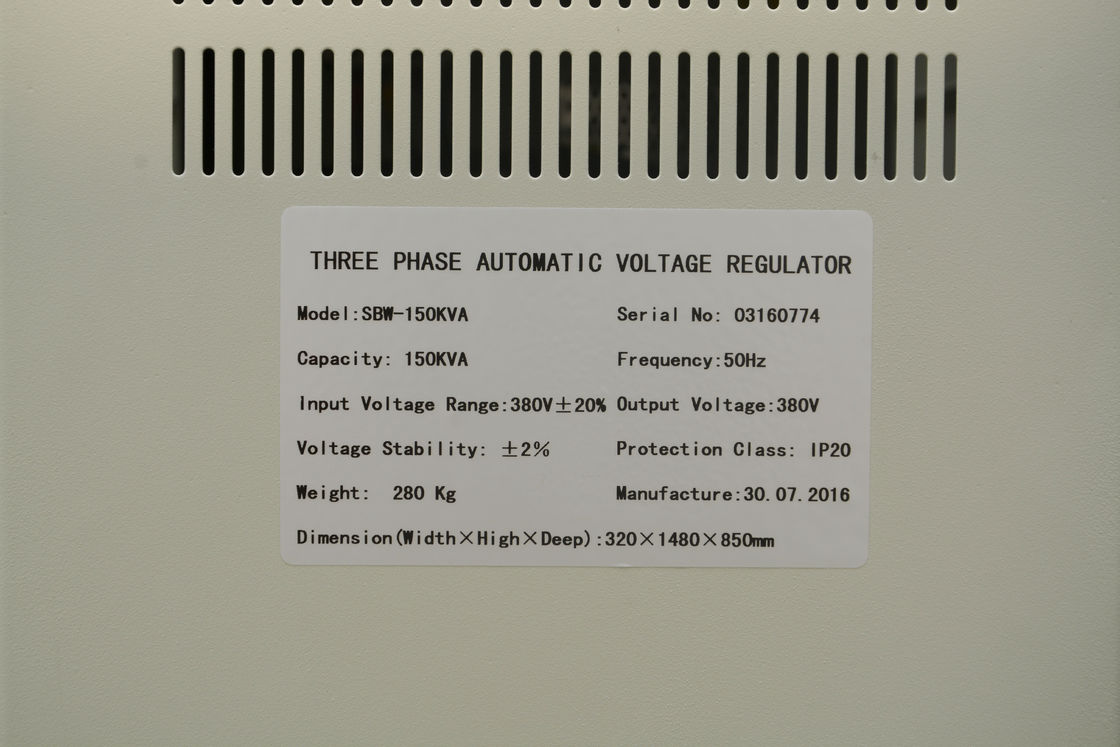

| Model Number: | SBW-150KVA |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 unit/month |
| Rated Capacity (kVA): | 150KVA | Time For Response:: | ≤ 1.5s (input Fluctuation Within 10%) |
|---|---|---|---|
| Efficiency:: | ≥ 98% | Materail: | Copper |
| Protection Class: | IP20 | Weight: | 280kg |
| Dimension: | 320×1480×850mm | ||
| High Light: | three phase automatic voltage regulator,mechanical voltage regulator |
||
Overview:
The requirement of high quality mains supply for modern computerized medical equipment is high. Electrical noise and transients on the line can cause "artifacts" in the digital image which may result in misdiagnoses. Maintaining correct incoming mains supply to many types of medical imaging equipment is crucial to obtaining consistently usable exposures.
MODERN has for many years manufactured power conditioner for medical system used to provide clean power to medical imaging and therapy equipment. Back from 1992, we are the first batch of power conditioner supplier for GE(Beijing) Health Care. World famous Phillips, Hitachi, and Shimadzu also adopt our products.
Description:
Owing to our domain expertise and rich industry experience of our professionals, we have been able to design and manufacture a broad range of AC Voltage Stabilizers. These industry experts fabricate the range making use of extreme quality of raw material that is procured from the authenticated and trusted organizations of the market.
Voltage Regulator Feature:
1.This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe.
2.It is provided with two systems of manual/automatic dual control,direct output and stabilizing output, with the functions of over/under-voltage protection,delay and error protection etc, it is reliable and suitable forany load.
| Input Voltage | DBW SBW |
| 220±15%,20%,30%,50% 380±15%,20%, 25%30%,50% | |
| Output Voltage (Preset at 1.5%) | 220Vac±1-5% 380Vac±1-5% |
| Efficiency | >98% |
| Precision | 1-5% |
| Frequency | 47-53Hz |
| Response Time | <0.5S/20V(Line Voltage) |
| Insulated Strength | 2000V/1 minute without puncture 2500V/1 minute without puncture |
| Insulated Resistance | >2MΩ |
| Wave Deformation | Nil |
| Isolation transformer | Optional |
| Surge Protection | Optional |
