3 Phase Electronic Dry Type Transformer Auto Transformer 60HZ 220V / 415V

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SGB-80KVA
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1000 unit/month
Detail Information
Material: Copper Frequency: 60HZ
Phase: Three Phase Input Voltage: 220V
Output Voltage: 415V Insulation Class: H
High Light:

medical isolation transformer

,

outdoor dry type transformer


Product Description

3 Phase Electronic Dry Type Transformer Auto Transformer 60HZ 220V / 415V



Quick Detail:



Dry Type Transformer

Rated power: 80KVA

220V input 415V output isolation transformer





Description:



Our S(D)G series dry type, iron core Transformers and Reactors adopt high quality low loss silicon sheet and arranged non-bobbin coil winding technology, and we apply vacuum pressure impregnating(VPI) process and solidify baking process to achieve insulation class H or C. Our transformers are widely used on any occasions where voltage is below 1000V and capacity up to 2000KVA, and equipment which require voltage to step up or down. Our Reactors are used in a large variety of applications and in many industrial activities from phase-shifting to harmonic suppression.



Three phase or single phase dry-type low voltage (LV) transformers are used as isolation transformers or to adjust the voltage level in the LV distribution grid. We have advanced technology and imported equipments and made of high quality silicon sheet, copper/aluminum enamel insulated wire(or high quality foil), insulation material and optimal design. Applied with arranged non-bobbin coil winding technology and Vacuum Pressure Impregnation(VPI) process, the transformer insulation class up to H or C.



Applications:



- Wind or solar

- Transportation (ie, marine or railways)

- Uninterruptible power supply (UPS)

- Chemical, oil and gas industry

- Motor drive

- Converters





Competitive Advantage:



- Low losses

- Low weight and compact dimensions

- Non-flammable and non-explosive

- IP21 enclosures (optional)

- With air cooling based on natural convection (AN) or with forced air cooling (AF)

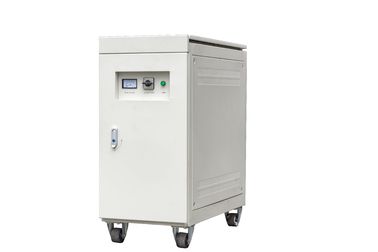

3 Phase Electronic Dry Type Transformer Auto Transformer 60HZ 220V / 415V 0
