80KVA Low Voltage Copper Coil Iron Core Dry Type Isolation Transformer with casing box

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SGB-80KVA
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1000 unit/month
Detail Information
Material: Copper Capacity: 80KVA
Frequency: 60HZ Insulation: H Class
Weight: 312kg Demension: 405*800*895 Mm
High Light:

medical isolation transformer

,

outdoor dry type transformer


Product Description

80KVA Low Voltage Copper Coil Iron Core Dry Type Isolation Transformer with casing box



Quick Detail:



Three Phase Dry Type Transformer

We offer OEM and ODM for This Product.

Rated power: 1-1000KVA





Description:



Our S(D)G series dry type, iron core Transformers and Reactors adopt high quality low loss silicon sheet and arranged non-bobbin coil winding technology, and we apply vacuum pressure impregnating(VPI) process and solidify baking process to achieve insulation class H or C. Our transformers are widely used on any occasions where voltage is below 1000V and capacity up to 2000KVA, and equipment which require voltage to step up or down. Our Reactors are used in a large variety of applications and in many industrial activities from phase-shifting to harmonic suppression.



Three phase or single phase dry-type low voltage (LV) transformers are used as isolation transformers or to adjust the voltage level in the LV distribution grid. We have advanced technology and imported equipments and made of high quality silicon sheet, copper/aluminum enamel insulated wire(or high quality foil), insulation material and optimal design. Applied with arranged non-bobbin coil winding technology and Vacuum Pressure Impregnation(VPI) process, the transformer insulation class up to H or C.







Type:

  • Isolation Transformers
  • Auto Transformers
  • Harmonic Mitigating Transformers
  • K-Factor Transformers
  • Variable Transformers
  • Buck & Boost Transformers







Applications:



Our low voltage transformers are widely used in industrial applications and in commercial and public buildings. They are also used for adjusting the voltage from 690 V to 400 V or as isolation transformers with a voltage ratio of 1:1, providing galvanic separation.

Dedicated products are available for various applications:

- Wind or solar

- Transportation (ie, marine or railways)

- Uninterruptible power supply (UPS)

- Chemical, oil and gas industry

- Motor drive

- Converters







Specifications:





Number of phases 3 or 1
Rated power 1-1000KVA(others on request)
Primary/secondary voltage 220,230,380,400,600,690(others on request)
Frequency 50, 60, 400Hz







Competitive Advantage:



- Low losses

- Low weight and compact dimensions

- Non-flammable and non-explosive

- IP21 enclosures (optional)

- With air cooling based on natural convection (AN) or with forced air cooling (AF)

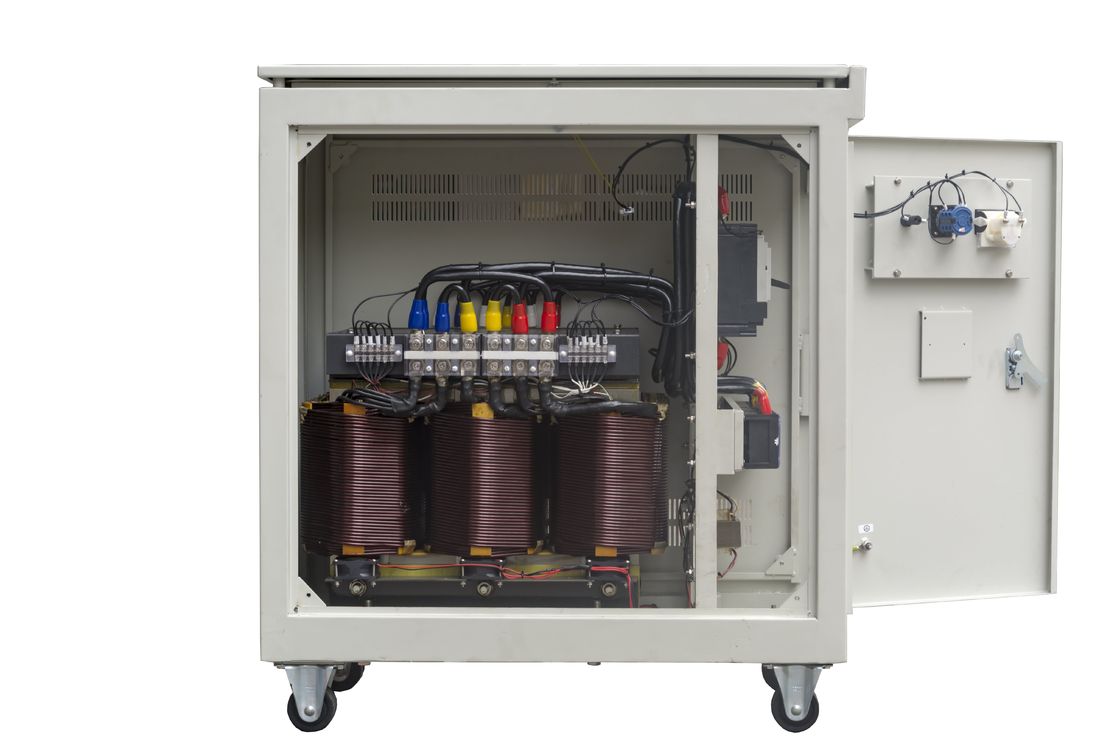

80KVA Low Voltage Copper Coil Iron Core Dry Type Isolation Transformer with casing box 0
