| Place of Origin: | China |
|---|---|
| Brand Name: | Modern |
| Certification: | CE,ISO 9001 |
| Model Number: | SBW |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 unit/month |
| Dimension: | 280×1280×700mm | Capacity: | 50KVA |
|---|---|---|---|
| Votage Stability Range: | -2%~+2% | Weight: | 191Kg |
| Main Mertierails: | Copper, | ||
| High Light: | three phase automatic voltage regulator,mechanical voltage regulator |
||

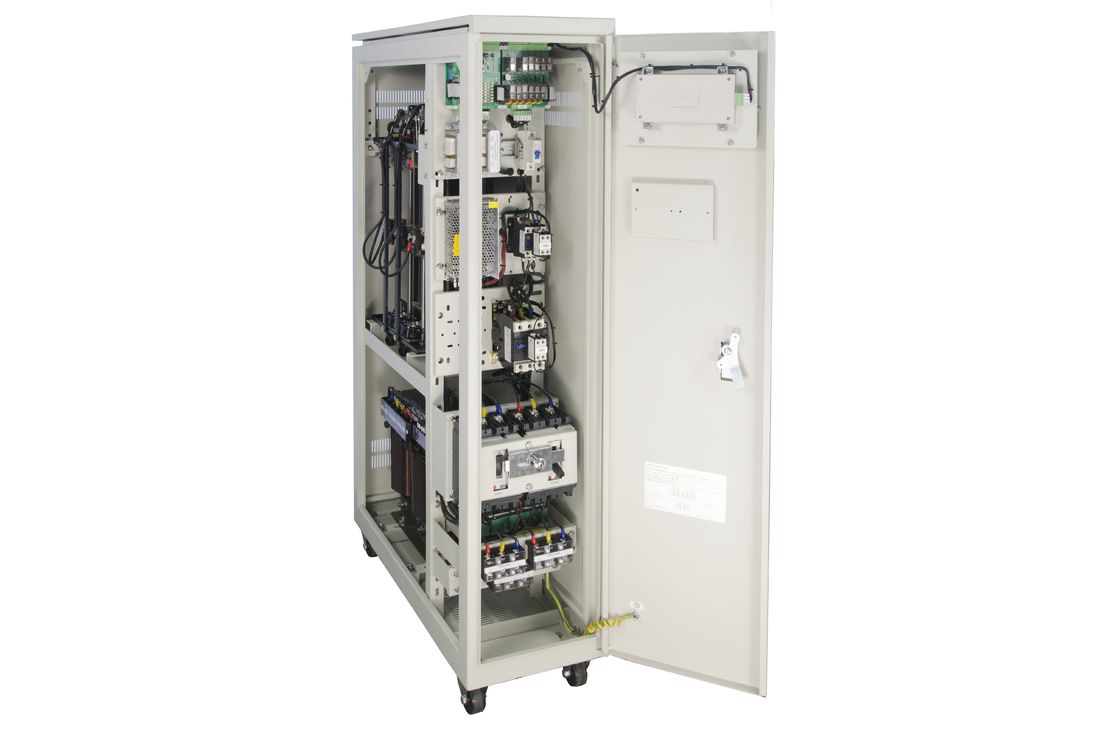

Micro - Computer Three Phase Voltage Stabilizer , AC Automatic Power Voltage Regulator
Description:
This series product voltage using the induction voltage regulating principle, combined with our company independent research and development of process technology and structure design, using imported enameled wire and insulation material combination of a new generation of pure linear non- contact
voltage regulator, products with high efficiency, strong ability to resist impact load, lossless device, long life and other advantages.
Applications:
Widely used in government agencies, research centres,embroidery,textile,rail transportation,photoelectric
display, printing and packaging, radio and television, process control, military instrument control, financial
securities, medical equipment, metal processing, agricultural machinery, electric power department, office,
computer network, telecommunications, computer numerical control equipment, etc.
Technical Specifications:
|
Input Voltage |
Single phase 220V±20%, three phase: 380V±20% The other input voltage range and rated voltage can be custom designed. |
|
Output Voltage |
Single phase 220V±1-5%, three phase: 380V±1-5% |
|
Supply Frequency |
50/60Hz |
|
Insulation Resistance |
≥2MΩ |
|
Voltage Regulation Mode |
Independent phase regulation for three phase |
|
Waveform Distortion |
nil |
|
Insulation Class |
H class |
|
Method of Voltage Regulation |
Regulation transformer with servomotor |
|
Insulated Strength |
Single phase: 2000V/1min without puncture Three phase: 2500V/1 min without puncture |
|
Efficiency |
>97% on full load |
|
Overload Rating |
Withstand 200% overload in short time |
|
Protection class |
IP20(indoor), outdoor type on request |
|
Electrical safety |
CE equivalent |
|
Operational Temperature |
-20 °C to +45 °C |
|
Functions |
Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown, Under voltage shutdown, Safe start |
