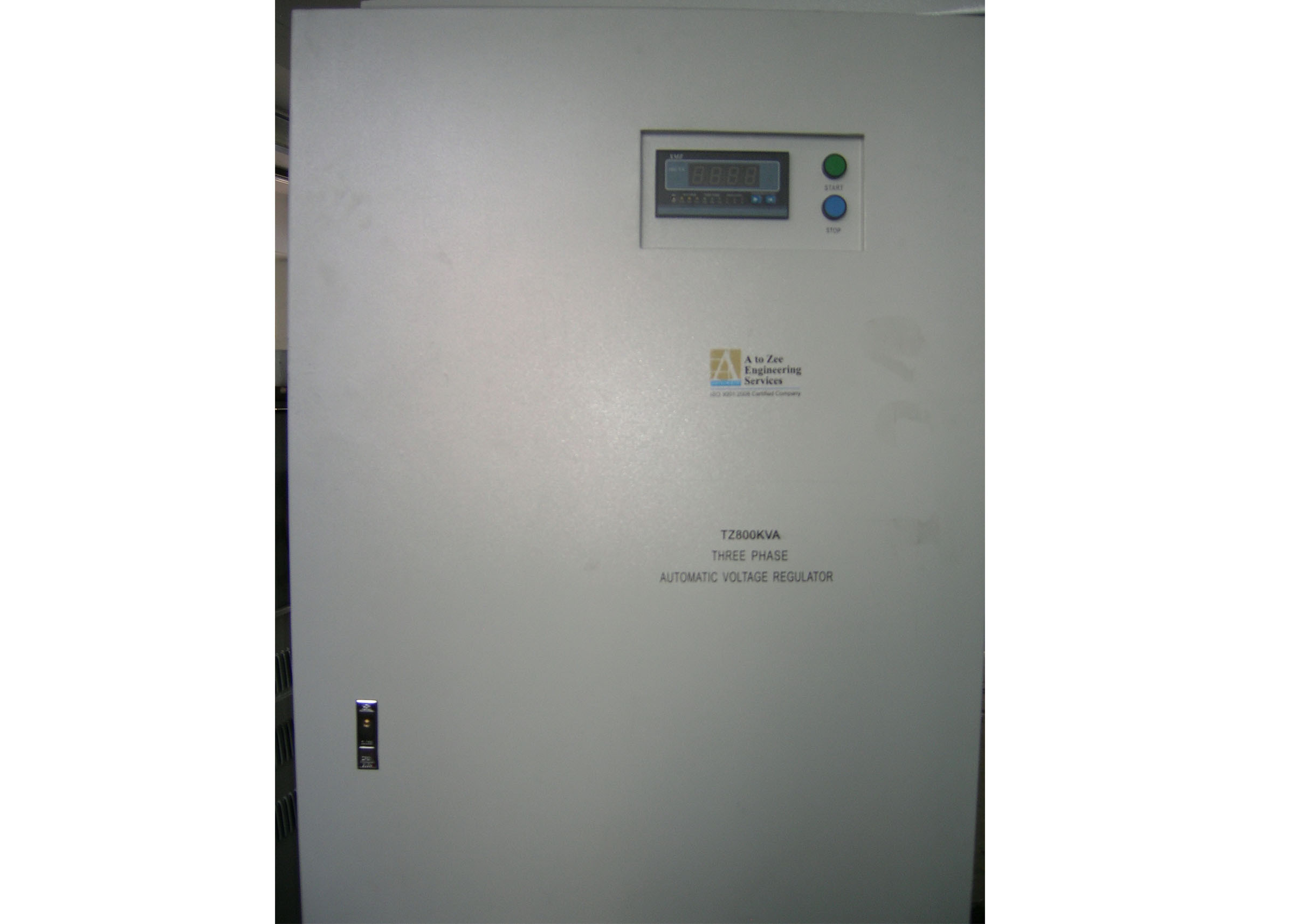

800KVA SBW 380V/400V/440V IP20 AC Three Phase Voltage Stabilizer 50Hz / 60Hz
Quick Detail:
Capacity | 800KVA |
Certificate | CE |
Model | SBW |
Phase | Three Phase |
Description:
Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage regulators provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.
Each regulator has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.
Applications:
BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .
Specifications:
Input Voltage |
Three phase 380V±20% |
Output Voltage | Three phase: 380V±1-5% The other output voltage can be custom designed. |
Supply Frequency | 50/60Hz |
Insulation Resistance | ≥2MΩ |
Voltage Regulation Mode | Independent phase regulation for three phase |
Waveform Distortion | nil |
Insulation Class | H class |
Method of Voltage Regulation | Regulation transformer with servomotor |
Insulated Strength | Three phase: 2500V/1min without puncture |
Efficiency | >97% on full load |
Overload Rating | Withstand 200% overload in short time |
Protection class | IP20(indoor), outdoor type on request |
Electrical safety | CE equivalent |
Operational Temperature | -20 °C to +45 °C |
Functions | Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown, Under voltage shutdown, Safe start |
Competitive Advantage:
Extremely wide voltage regulation range
· Maintenance free roller type carbon brush
· Individual regulation with unique small dimension
· Maximum capacity up to 5000KVA
· High Mean time Between Failure(MTBF)
· Reliable and quiet servo motors
· Wheels mounted for easy installation
· Start up delay to prevent over current inrush
· Isolation transformer on request
· Indoor or outdoor version on request
