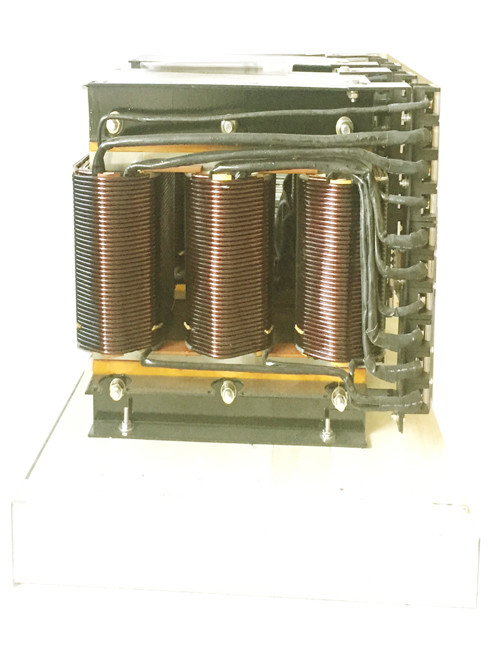

Industrial-class 50KVA Low Voltage Copper Coil Iron Core Dry Type Isolation Transformer 50HZ / 60HZ with OEM
Three Phase Dry Type Transformer
We offer OEM and ODM for This Product.
Rated power: 1-1000KVA
Our S(D)G series dry type, iron core Transformers and Reactors adopt high quality low loss silicon sheet and arranged non-bobbin coil winding technology, and we apply vacuum pressure impregnating(VPI) process and solidify baking process to achieve insulation class H or C.
Our transformers are widely used on any occasions where voltage is below 1000V and capacity up to 2000KVA, and equipment which require voltage to step up or down. Our Reactors are used in a large variety of applications and in many industrial activities from phase-shifting to harmonic suppression.
Three phase or single phase dry-type low voltage (LV) transformers are used as isolation transformers or to adjust the voltage level in the LV distribution grid.
Our low voltage transformers are widely used in industrial applications and in commercial and public buildings. They are also used for adjusting the voltage from 690 V to 400 V or as isolation transformers with a voltage ratio of 1:1, providing galvanic separation.
Dedicated products are available for various applications:
- Wind or solar
- Transportation (ie, marine or railways)
- Uninterruptible power supply (UPS)
- Chemical, oil and gas industry
- Motor drive
|Number of phases||3 or 1|
|Rated power||1-1000KVA(others on request)|
|Primary/secondary voltage||220,230,380,400,600,690(others on request)|
|Frequency||50, 60, 400Hz|
- Low losses
- Low weight and compact dimensions
- Non-flammable and non-explosive
- IP21 enclosures (optional)
- With air cooling based on natural convection (AN) or with forced air cooling (AF)
