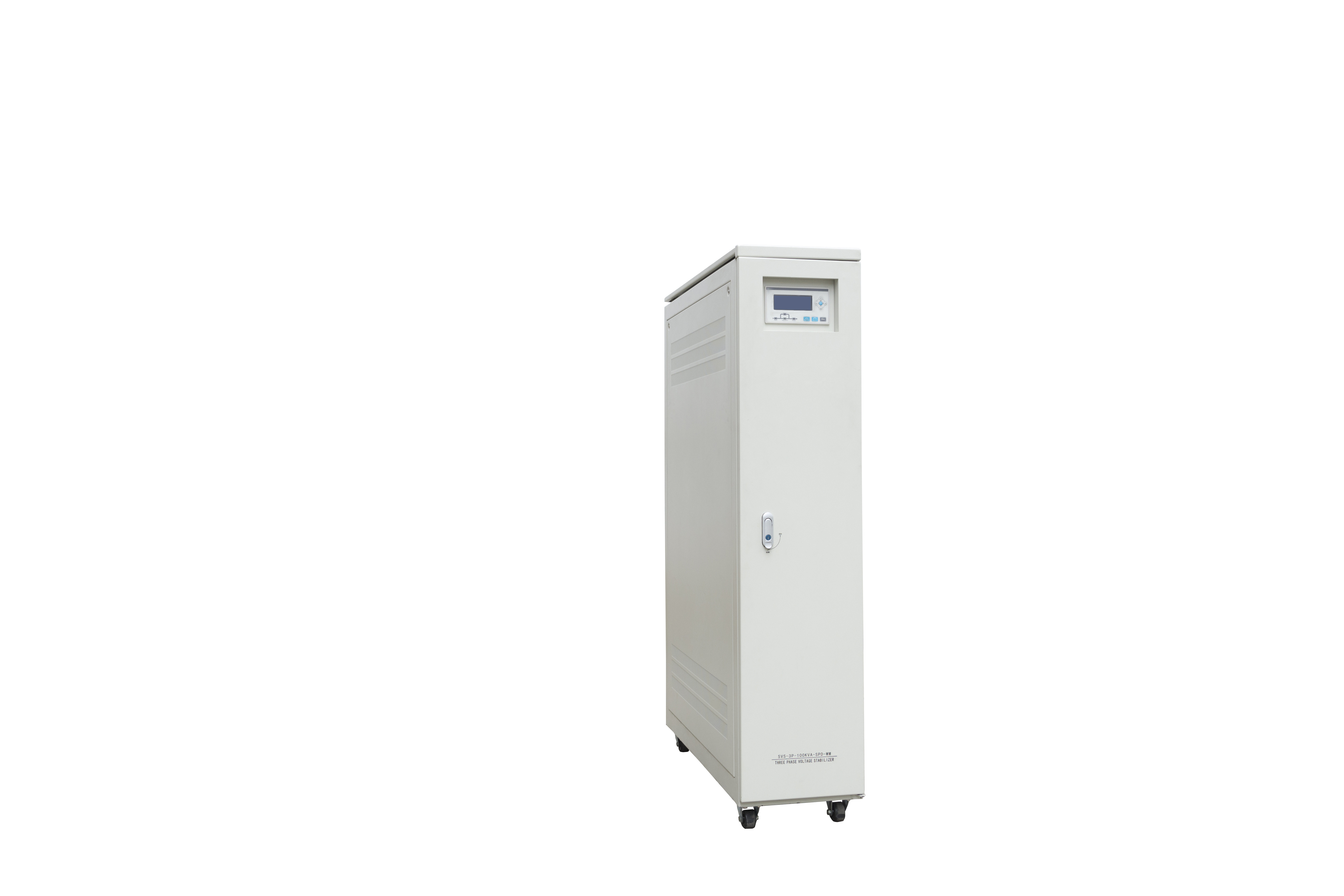

Portable AC Power Stabilizer , 100KVA 380V AVR Voltage Stabilizer

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SVS
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Detail Information
Dimension: 320×1470×850mm Capacity: 100KVA
Votage Stability Range: -3%~+3% Weight: 317Kg
Phase: Three Phase
High Light:

automatic voltage regulator 3 phase

,

avr voltage regulator


Product Description

Portable AC Power Stabilizer , 100KVA 380V AVR Voltage Stabilizer ​





Description:



This series fully automatic compensated power voltage stabilizer can keep output voltage stable when outsidepower supply network fluctuation and load change resulting in voltage waving, this series products compared with other item stabilizers, it has advantages of large capacity,high efficiency,non waveform distortion, voltage adjust steady etc,It can support instantaneous overload,can long time work continuously,manual and self- motion operation,over voltage,lack phase,phase frequency and mechanical fault protection.



Applications:



BROADCAST: Regulation for broadcast transmitter sites and studios.

COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.

INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.

MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.

TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .



Technical parameter


Input current (A): Correlation to the rated capacity
Input voltage (V): 380VAC+/-20% optional, 220VAC+/-20% optional
Output voltage (V): 380VAC+/-5% optional, 220VAC+/-5% optional
Phase number: Three phase single phase
Insulated strength: 2000V/1 Min does not have the puncture
Waveform distortion: ≤ 0.1%
Working frequency (Hz): 50~60
Constant voltage precision: +/-5% adjustable



Model

Dimension(W×D×H)mm

Model

Dimension(W×D×H)mm

DBW-10KVA

300×720×1270

DBW-50KVA

300×800×1370

DBW-20KVA

300×720×1270

DBW-80KVA

300×800×1370

DBW-30KVA

300×720×1270

DBW-100KVA

300×800×1370

SBW-15KVA

300×720×1270

SBW-350KVA

500×1050×1800

SBW-20KVA

300×720×1270

SBW-400KVA

500×1050×1800

SBW-30KVA

300×720×1270

SBW-500KVA

600×1250×2000

SBW-50KVA

300×800×1370

SBW-600KVA

600×1250×2000

SBW-80KVA

300×800×1370

SBW-800KVA

600×1250×2000

SBW-100KVA

300×800×1370

SBW-1000KVA

800×1800×1900

SBW-120KVA

300×800×1370

SBW-1200KVA

1000×1800×1900

SBW-150KVA

400×900×1600

SBW-1500KVA

1000×1800×1900

SBW-180KVA

400×900×1600

SBW-2000KVA

1000×1800×1900  two cabinets

SBW-200KVA

400×900×1600

SBW-3000KVA

1000×1800×1900  two cabinets

SBW-250KVA

500×1050×1800

SBW-4000KVA

1000×1800×1900  three cabinets

SBW-300KVA

500×1050×1800

SBW-5000KVA

1000×1800×1900  four cabinets
