Single Phase Electric Power Transformers , 1 KVA 220V Control Power Transformer

China Single Phase Electric Power Transformers , 1 KVA 220V Control Power Transformer supplier
Single Phase Electric Power Transformers , 1 KVA 220V Control Power Transformer supplier Single Phase Electric Power Transformers , 1 KVA 220V Control Power Transformer supplier

Large Image :  Single Phase Electric Power Transformers , 1 KVA 220V Control Power Transformer

Product Details:

Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: TJA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Contact Now
Detailed Product Description

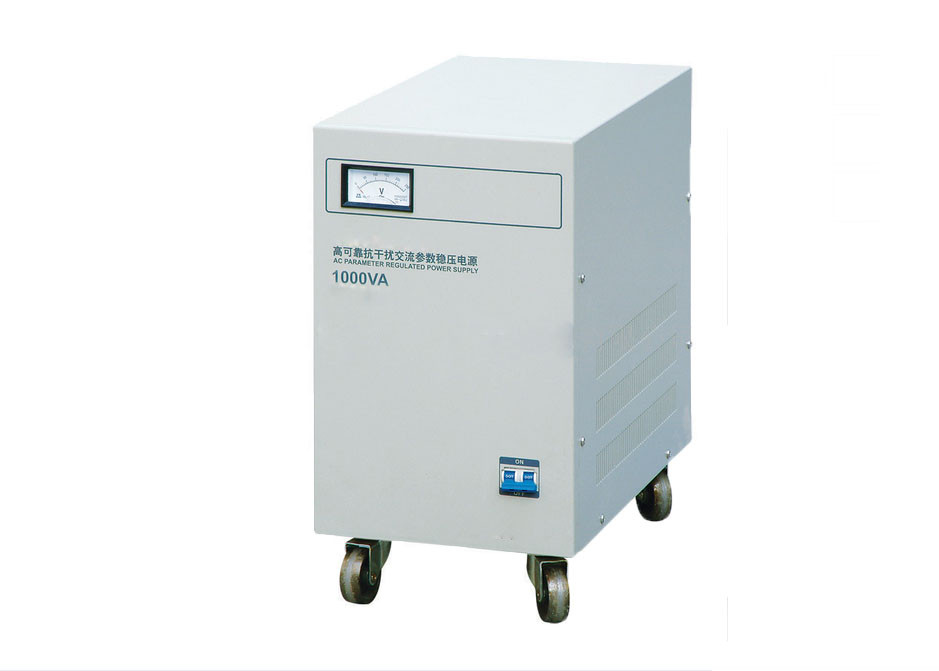

TJA-1KVA 220V Single Phase Constant Voltage Transformer CVT



Quick Detail:



Constant Voltage Transformer

TJA-1KVA

Frequency: 50/60HZ

Weight: 36kg

Dimension(W×H×D)mm: 220×320×390





Description:



Constant Voltage Transformers(CVT) are ideal maintenance free solutions for loads that can suffer erratic operation or be damaged by electrical noise(common or series mode), local transient, mains power sags, surges and brownouts because of its resonant property.



When faced with an extreme transient such as a local lighting strike, the CVT will present a low impedance to the mains protecting both itself and any connected loads. The ferro-resonant transformer technology ensures that CVT will generate a perfect sine wave output even when fed from square or quasi-square wave sources. A CVT is also the most efficient way to drive a switched mode power supply(SMPS), and provides harmonic buffering.







Applications:

  • Process control
  • Automation
  • Computer system
  • Broadcasting
  • Medical
  • Air plane, rail, ship







Specifications:





Model TJA
Power(KVA) 0.5KVA 1KVA 2KVA 3KVA 5KVA 7.5KVA 10KVA 15KVA
Input Voltage Single phase 220±30%(154-286V)
Output Voltage Single phase 220V±1-3%
Efficiency ≥90% on full load
Frequency 50/60Hz
Dimension(W×H×D)mm 140×210×360 220×320×390 320×680×450 320×710×520 400×820×560 460×920×600
Weight(kg) 18 36 70 92 136 220 270 320









Competitive Advantage:



  • Galvanic isolation
  • High common and normal mode noise attenuation
  • Sag, surge and brownout protection
  • Sine wave output(regardless of input waveform)
  • Low installation heat output and running costs(maintenance free)
  • High Mean Time Between Failure(MTBF)

Easy to install
