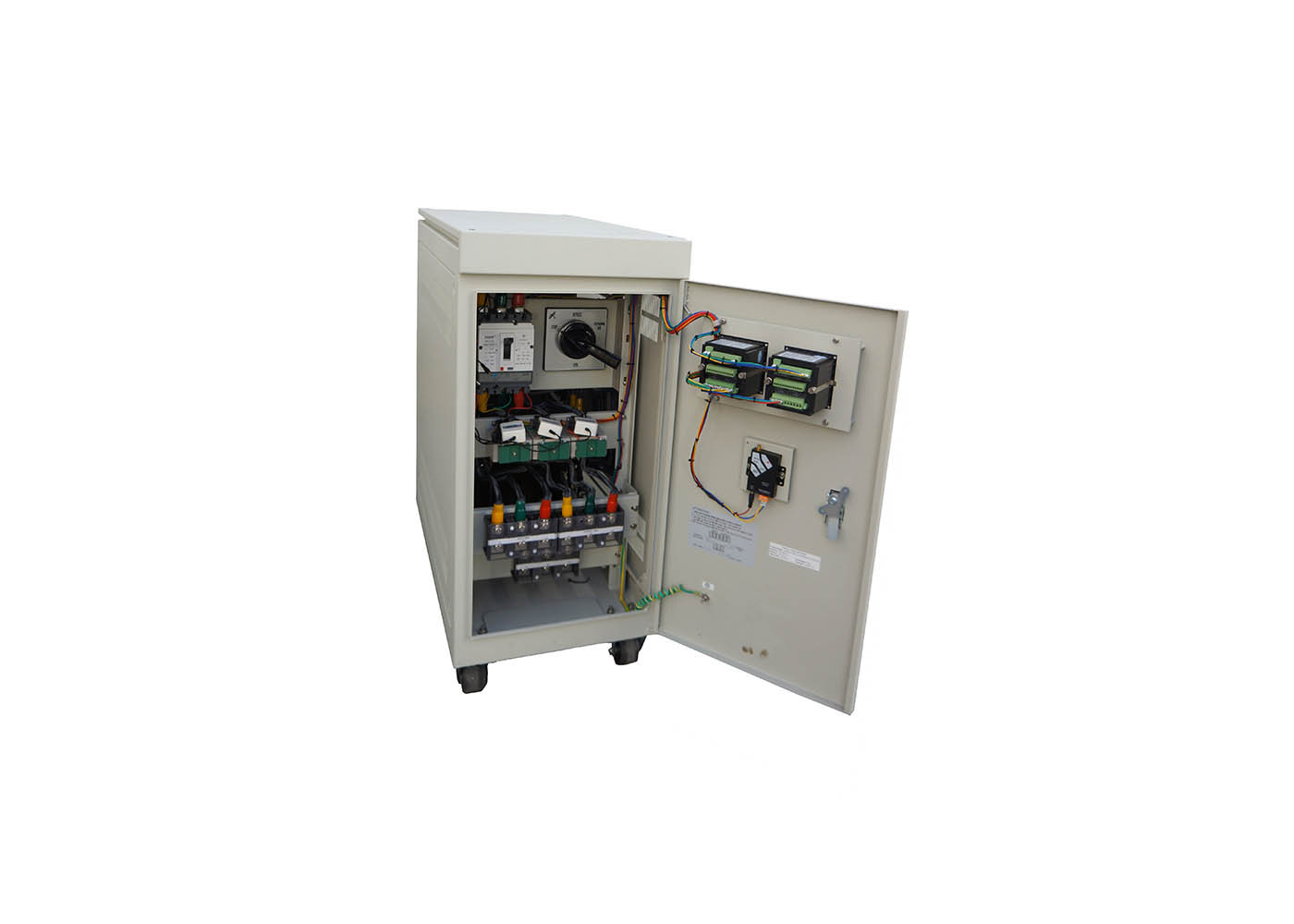

EST-30KVA 380V/400V IP20 Indoor Energy Saving Transformer With GPRS
Energy Saving Transformer-EST 30KVA help you reduce voltage and save energy.
Many types of electrical equipment work perfectly well on a voltage lower than the standard mains supply. This is particularly true for equipment designed to operate on 380V or 400V three phase supplies where the supply is 415V. The actual power supply is higher than necessary the equipment will consume more power than needed and in many cases, equipment life is reduced, effectively increasing the cost of ownership.
Energy Saving Transformer (EST) helps organizations make some of the biggest financial savings possible on their energy bills by reducing the mains voltage used to power electrical equipment. It is a tapped auto-transformer which reduces voltage by up to 12% by a fixed amount, making it ideal for sites with a reasonably stable voltage supply. At full load the EST Voltage Optimization delivers efficiency of more than 99% which can realize energy savings of up to 20%.
|Input Voltage||Maximum 440V three phase|
|Output Voltage||Maximum nominal reduction of 12%|
|Output Adjustment||3 fixed taps of 6%, 8% & 10%(other upon request)|
|Insulation Class||H class|
|Cooling Type||Natural Air(AN)/Forced Air(AF)|
|Efficiency||>99% at full load|
|Electrical Safety||CE equivalent|
|Operational Temperature||-20 °C to +45 °C|
|Relative Humidity||<90% non-condensing|
|Enclosure||IP20(indoor), outdoor on request|
|GPRS||Remote control and monitoring the VO unit parameters|
