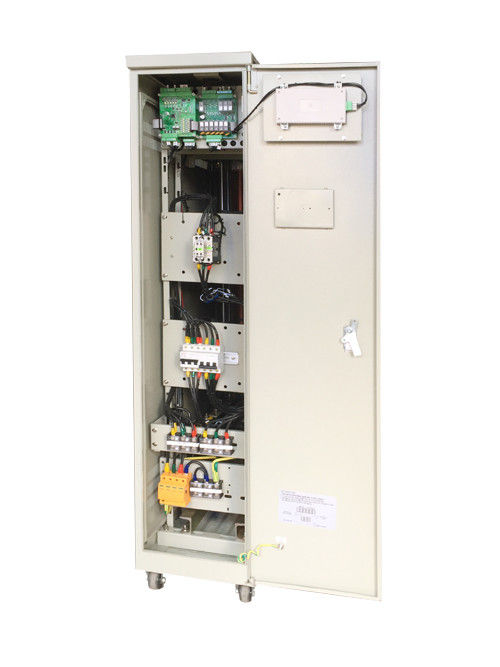

Super Low Voltage 30KVA 380V Three Phase Voltage Stabilizer 50Hz / 60Hz

Basic Information
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SBW
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Detail Information
Dimension: 320×1480×850mm Capacity: 30KVA
Input Voltage Range Range: 400V+-20% Voltage Stability: +/-5%
Weight: 223Kg Frequency: 60Hz
High Light:

three phase automatic voltage regulator

,

mechanical voltage regulator


Product Description

30KVA 380V Automatic Three Phase Voltage Stabilizer,60Hz Super Low Voltage,Energy Saving Automatic





Description:


We are Manufacturer which specialized in Servo Voltage Stabilizer, Uninterruptible Power Supply (UPS), Active Power Filter, etc for nearly 40 years. And be vendor of Mitsubishi Elevator in East Africa, GE, Emerson.



This serie large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of western Europe.It is provided with two systems of manual/automatic dual control, direct output and stabilizing output, with the functions of over under-voltage protection, delay and error protection etc. It is reliable and suitable for any load.



It's widely used in post and telecommunication, department stores, elevators, hospitals, schools, printing, securities and other occasions where all needs normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipments and computer powers and supports.



Technical Specifications:





Input Voltage

380V±20%

The other input voltage range and rated voltage can be custom designed.

Output Voltage

 380V±1-5%

Supply Frequency

50/60Hz

Insulation Resistance

≥2MΩ

Voltage Regulation Mode

Independent phase regulation for three phase

Waveform Distortion

nil

Insulation Class

H class

Method of Voltage Regulation

Regulation transformer with servomotor

Insulated Strength

Three phase: 2500V/1 min without puncture

Efficiency

>97% on full load

Overload Rating

Withstand 200% overload in short time

Protection class

IP20(indoor), outdoor type on request

Electrical safety

CE equivalent

Operational Temperature

-20 °C to +45 °C

Functions

Power- on style, Malfunction protection, Short- circuit protection, Lack of

phase protection, Over voltage shutdown, Under voltage shutdown, Safe

start
